DMX Interface for maximum reliability

Modern lighting control systems consist of many layers: operating systems, drivers, networks, and background services all interact with one another. This architecture offers flexibility - but also introduces dependencies that are not always desirable or available in every situation.

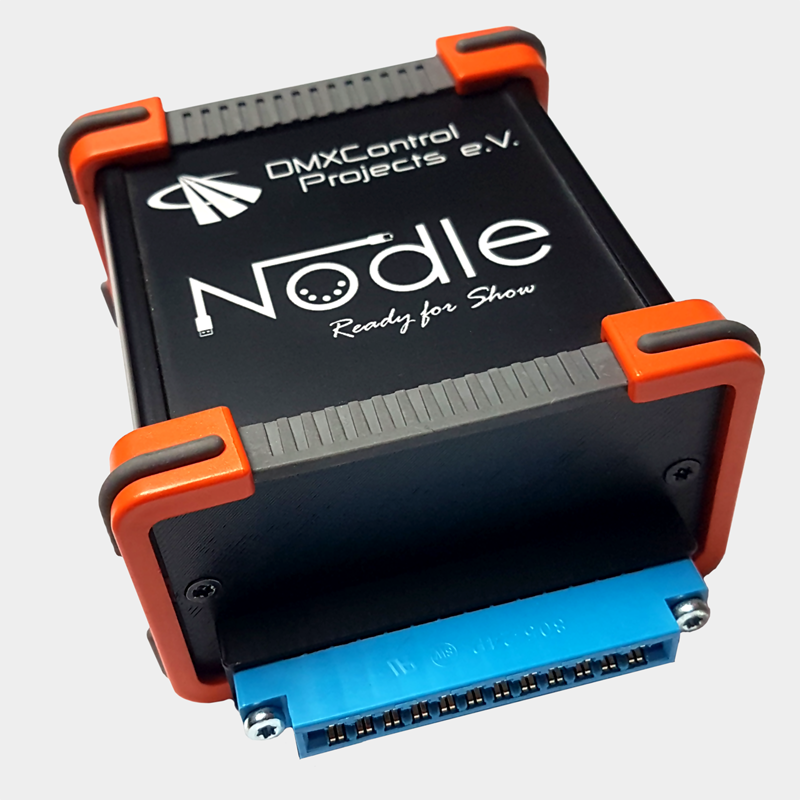

The Nodle R4S ULTIMATE is designed for users who need a clearly defined, reliable DMX interface for precisely such situations.

Clear purpose, clear boundaries

The Nodle R4S ULTIMATE is deliberately designed as a pure DMX interface. It does not handle any control logic and makes no decisions of its own.

• Control is handled entirely by the connected host system
• The interface converts the received data into DMX signals without modification
• Behavior and output are clearly traceable at all times

This clear separation significantly simplifies use in critical or unusual environments.

Predictable timing

A key development goal of the Nodle R4S ULTIMATE is consistently reproducible timing behavior.

• Fixed processing sequences
• No competing background processes
• No load-dependent priority changes

This ensures that DMX timing remains stable and predictable.

Independent of modern infrastructure

The Nodle R4S ULTIMATE requires no network connection, no online services, and no external dependencies beyond the direct connection to the host.

• No network stack
• No cloud connection
• No automatic updates
• No license checks during operation

The interface works exclusively with the system to which it is connected.

ULTIMATE as a Design Principle

The suffix ULTIMATE stands for a consistent focus on stability, transparency, and long-term reliability. Instead of constantly adding new features, special emphasis was placed on clearly defined behavior and a sustainably maintainable architecture. And last but not least, the 5-pin DMX jacks reinforce the ULTIMATE design principle.

Technical basics

The Nodle R4S ULTIMATE is based on a deliberately chosen host platform featuring:

• a fixed clock speed of 1 MHz
• a clearly defined memory and execution model
• a runtime environment without multitasking or dynamic prioritization

These characteristics ensure behavior that remains completely predictable—even over long periods of operation.

Compatibility

The Nodle R4S ULTIMATE is compatible with:

• Commodore 64
• Commodore 64 Ultimate
